Insecure Shop Pentest

·10 mins
Mobile Security Pentesting

Static Analysis With Drozer #

Package information #

I started by enumerating the permissions declared by the app using the command run app.package.list -f insecureshop:

Package: com.insecureshop
  Application Label: InsecureShop
  Process Name: com.insecureshop
  Version: 1.0
  Data Directory: /data/user/0/com.insecureshop
  APK Path: /data/app/~~FIyUrbvYY3VB_X0IA7U5Iw==/com.insecureshop-Az0TW47ZRtrdfG9MlqBcNQ==/base.apk
  UID: 10110
  GID: [3003]
  Shared Libraries: [/system/framework/android.test.base.jar]
  Shared User ID: null
  Uses Permissions:
  - android.permission.INTERNET
  - android.permission.READ_EXTERNAL_STORAGE
  - android.permission.WRITE_EXTERNAL_STORAGE
  - android.permission.READ_CONTACTS
  - android.permission.WAKE_LOCK
  Defines Permissions:
  - com.insecureshop.permission.READ

The IPC attack surface #

To evaluate the attack surface exposed via Android’s IPC layer, I ran the command run app.package.attacksurface com.insecureshop, which returned the following output:

Attack Surface:
  6 activities exported
  0 broadcast receivers exported
  1 content providers exported
  1 services exported
    is debuggable

The exported IPC components give an attacker several entry points into the app. Depending on the functionality wired to each activity, the content provider, and the service, any of them could be abused from an unrelated app on the device. I also noted that the app is debuggable, which means I can attach a debugger to the process over adb and step through the code at runtime.

Installing the app #

I installed the app with adb and was greeted by the login screen, which normally forces the user to authenticate before reaching any functionality. However, because six activities are exported, I can launch them directly through adb and explore the app without logging in first. I ran run app.activity.info -a com.insecureshop to enumerate the exported activities, which returned:

Package: com.insecureshop
  com.insecureshop.ChooserActivity
    Permission: null
  com.insecureshop.AboutUsActivity
    Permission: null
  com.insecureshop.ProductListActivity
    Permission: null
  com.insecureshop.WebViewActivity
    Permission: null
  com.insecureshop.WebView2Activity
    Permission: null
  com.insecureshop.ResultActivity
    Permission: null

Launching the activities individually didn’t reveal much on its own, so I moved on to inspecting the content provider using the drozer command run app.provider.info -a com.insecureshop:

Package: com.insecureshop
  Authority: com.insecureshop.provider
    Read Permission: com.insecureshop.permission.READ
    Write Permission: null
    Content Provider: com.insecureshop.contentProvider.InsecureShopProvider
    Multiprocess Allowed: False
    Grant Uri Permissions: False

From this output I can see that:

  • The app exposes a content provider with the authority com.insecureshop.provider, which other apps can query through the content URI content://com.insecureshop.provider/products.
  • Read access is gated by the custom permission com.insecureshop.permission.READ declared in the app’s AndroidManifest.xml.
  • No permission is required for writes (Write Permission: null), which can allow unauthorized data modification depending on how the provider is implemented.
  • The provider is implemented by the class com.insecureshop.contentProvider.InsecureShopProvider.
  • It does not support multiprocess access, so it runs in a single process.
  • It does not grant temporary URI permissions to other apps.

Read access is partially protected by the custom permission, but write operations are effectively unrestricted, which is worth digging into further once I reach the provider implementation.

Manual code analysis #

To try and bypass the login, I started by looking at the launcher activity that hands off to the Login Activity. Reading through the login logic, the first issue that jumped out was an instance of OWASP Mobile Top 10 M9: Insecure Data Storage caused by unintentional data exposure — the app writes both the username and password straight to logcat:

Log.d("userName", username);
Log.d("password", password);

I confirmed that every value typed into the login form ends up in the log output:

Log output exposing the saved username and password

Any app or user with access to the device logs can therefore harvest valid usernames and passwords straight from logcat.

Next, I looked at the verifyUserNamePassword() function in the Util class. It becomes clear from the code that the app hardcodes the valid login credentials inside a HashMap instead of retrieving them from a secure backend or database:

private final HashMap<String, String> getUserCreds() {
    HashMap userCreds = new HashMap();
    userCreds.put("shopuser", "!ns3csh0p");
    return userCreds;
}

The method builds a HashMap containing a single username–password pair, where the username is shopuser and the password is !ns3csh0p. Because those credentials are embedded directly in the compiled app, anyone with the APK can pull them out through basic reverse engineering.

The verifyUserNamePassword() function then:

  1. checks whether the username supplied by the user exists as a key in the map,
  2. retrieves the corresponding stored password if the username is found, and compares it to the password entered by the user,
  3. returns true if the two values match, and false otherwise.

Because the credentials are hardcoded, logging in with shopuser / !ns3csh0p succeeds every time. This is a straightforward security weakness — anyone analyzing the app can extract these credentials and gain unauthorized access.

This behavior maps to the OWASP Mobile Top 10 risk M9: Insecure Data Storage. Hardcoding sensitive information such as login credentials inside the application code is unsafe because attackers can easily extract these values by reverse engineering the APK. OWASP defines insecure data storage as any case where sensitive data — passwords, tokens, authentication material — is stored without proper protection, encryption, or access controls, letting an attacker retrieve and abuse the information if they gain access to the app or the device.

In this case, storing the credentials (shopuser and !ns3csh0p) directly in the application code exposes them to anyone analyzing the app, which can lead to unauthorized access and compromise of user accounts.

References to security standards:

  • CWE-798: Use of Hard-coded Credentials — flags any authentication material embedded directly in application code or configuration.
  • CWE-532: Insertion of Sensitive Information into Log File — indicates that logging secrets such as passwords or authentication tokens is unsafe.
  • OWASP MASVS-STORAGE-3: sensitive data, including authentication credentials, must never be written to logs or other insecure storage.

Impact: Hardcoding credentials and simultaneously logging them exposes the app to unauthorized access and credential theft, violating secure storage principles and best practices for mobile applications.

AndroidManifest findings #

  1. android:debuggable="true" — debugging is enabled on the app, making it trivial for a reverse engineer to attach a debugger, dump stack traces, and access debugging helper classes. This maps to CWE-489: Active Debug Code.
  2. android:allowBackup="true" — this flag allows anyone with USB debugging enabled to back up application data off of the device via adb, exposing sensitive files. This maps to CWE-530: Exposure of Backup File to Unauthorized Control Sphere.
  3. Several activities declare intent filters. Any activity with an intent filter is automatically exported and reachable from other apps. Without an intent filter (and without android:exported="true"), the activity would only be startable from within the same app.

Credentials broadcast in plaintext #

On the About page, when the user clicks the About InsecureShop button, the onSendData() method is called:

Intent intent = new Intent("com.insecureshop.action.BROADCAST");
intent.putExtra("username", userName);
intent.putExtra("password", password);
sendBroadcast(intent);

The snippet grabs the username and password from shared preferences and sends them out as a plain, unprotected broadcast. Because no receiver permission is specified on sendBroadcast(), any app on the device can register a receiver for com.insecureshop.action.BROADCAST and silently steal the credentials. This is a classic instance of CWE-925: Improper Verification of Intent by Broadcast Receiver and maps to OWASP Mobile Top 10 M3: Insecure Authentication/Authorization and M9: Insecure Data Storage.

Inspecting the AndroidManifest.xml, I noticed that WebViewActivity is marked as BROWSABLE and registers an android.intent.action.VIEW intent, which is the tell-tale sign of a deep link. The data section of the intent filter looks like this:

<data
                    android:scheme="insecureshop"
                    android:host="com.insecureshop"/>

So the deep link scheme registered in the manifest is insecureshop://com.insecureshop, and it’s handled by the exported WebViewActivity. To test exploitability, I crafted a deep link targeting the /web path:

<html>
  <body>
    <a href="insecureshop://com.insecureshop/web?url=https://evil.com">Click me</a>
    <script>
      window.location = "https://evil-insecureshopapp.com";
    </script>
  </body>
</html>

Looking at the decompiled source in jadx, the /web handler extracts the url query parameter and passes it directly to webview.loadUrl() with no validation:

data = data4.getQueryParameter("url");
// ...
webview.loadUrl(data);

I then confirmed that the deep link triggers the activity and loads the attacker-controlled URL by running:

adb shell am start -a android.intent.action.VIEW \
  -d "insecureshop://com.insecureshop/web?url=https://evil.com"

InsecureShop opened and loaded evil.com inside its WebView, confirming that an attacker can force the app to load any URL without restriction.

To simulate the full drive-by scenario, I served the proof-of-concept page above using python3 -m http.server 8081, then browsed to it from the Android Studio emulator at http://10.0.2.2:8081. Tapping the link inside the emulator’s browser fired the deep link, and evil.com was loaded inside the InsecureShop WebView.

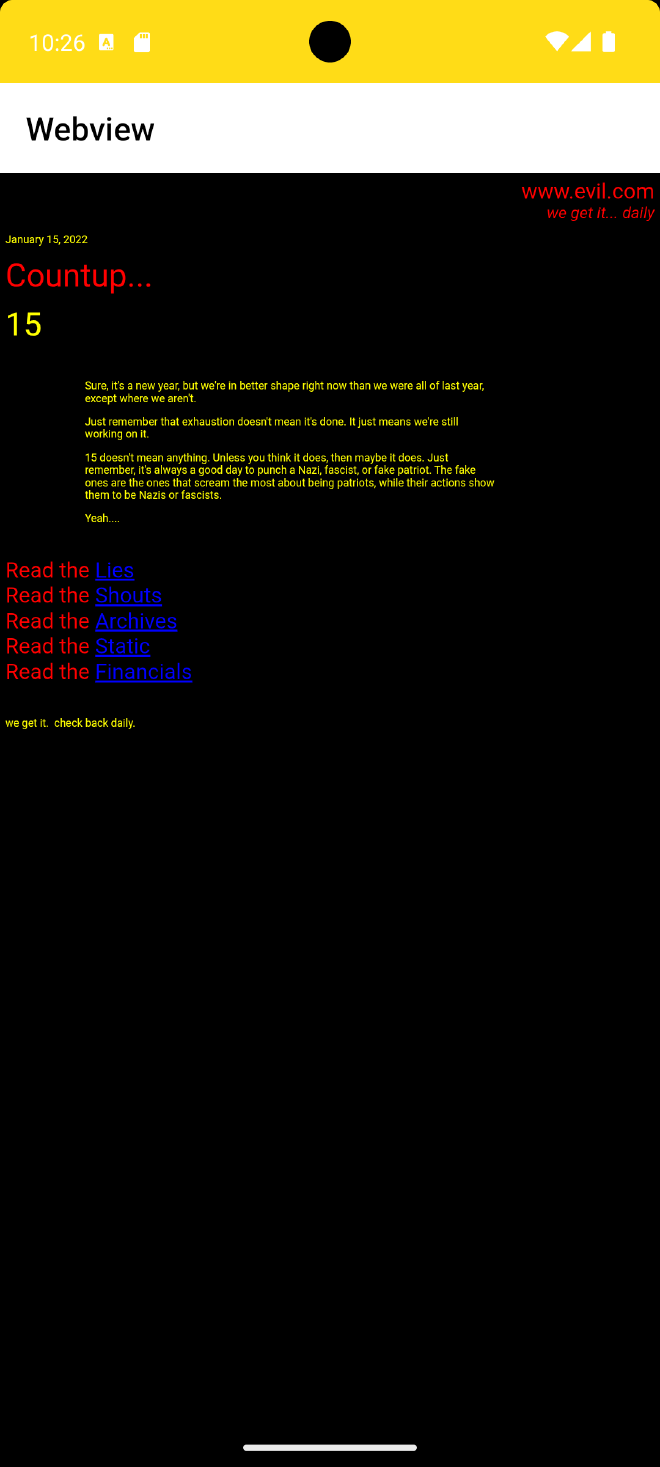

Deep link loading the attacker controlled website inside WebView

This vulnerability aligns with OWASP Mobile Top 10 2024 — M4: Insufficient Input/Output Validation and CWE-939: Improper Authorization in Handler for Custom URL Scheme. Mobile apps that fail to properly validate and sanitize data from external sources — deep links included — are at risk of exactly this kind of abuse. Here, the app never validates the url parameter extracted from the deep link before handing it to webview.loadUrl(), so an attacker can supply any URL they like. OWASP notes that such weaknesses can lead to unauthorized access to sensitive data and manipulation of app functionality, both of which are achievable here when chained with the insecure WebView settings discussed below.

Improper URL sanitization #

While reviewing WebViewActivity, I identified a second deep link path /webview that tries to restrict URLs to those ending with insecureshopapp.com:

if (StringsKt.endsWith$default(queryParameter, "insecureshopapp.com", false, 2, null)) {
    data = data3.getQueryParameter("url");
}

The developer tried to implement host validation, but endsWith() alone is not enough. The check only verifies that the URL string ends with insecureshopapp.com — it never parses the URL or validates the actual host component. An attacker can bypass the check by registering a domain such as evil-insecureshopapp.com and crafting the following deep link:

insecureshop://com.insecureshop/webview?url=https://evil-insecureshopapp.com

This passes the endsWith() check while loading a fully attacker-controlled domain in the WebView. The correct fix is to parse the URL, extract the actual host with Uri.getHost(), and compare it against an explicit allowlist rather than a suffix match:

Uri parsedUrl = Uri.parse(queryParameter);
if (parsedUrl.getHost().equals("insecureshopapp.com")) {
    // safe to load
}

As a general rule, any URL passed to shouldOverrideUrlLoading(), loadUrl(), or evaluateJavascript() should be verified against an allowlist of expected hosts before it ever reaches the WebView.

References:

  • OWASP Mobile Top 10 2024 — M4: Insufficient Input/Output Validation
  • CWE-184: Incomplete List of Disallowed Inputs
  • CWE-20: Improper Input Validation

Access to protected components #

I also noticed a PrivateActivity declared in the manifest with android:exported="false", which is worth revisiting when I explore whether any exported component can be abused to launch it indirectly.

Content providers #

In the Android security model, each app’s internal data is protected and other apps cannot reach it directly. They can only access shared data stored in external storage, or internal app data that is deliberately exposed through content providers. Inside InsecureShopProvider I found logic that fetches the username and password stored in shared preferences and packs them into a cursor:

MatrixCursor cursor = new MatrixCursor(new String[]{"username", "password"});
String[] strArr = new String[2];
String username = Prefs.INSTANCE.getUsername();
// ...
strArr[0] = username;
String password = Prefs.INSTANCE.getPassword();
// ...
strArr[1] = password;
cursor.addRow(strArr);
return cursor;

The URI that triggers this code path is content://com.insecureshop.provider/insecure. Any app that queries that URI gets back a cursor containing the username and password of the logged-in user. The provider does declare a custom permission android:readPermission="com.insecureshop.permission.READ", but because that permission is defined with the default signature/normal protection level and the app itself sets android:protectionLevel weakly, a malicious app can simply declare <uses-permission android:name="com.insecureshop.permission.READ"/> in its own manifest and be granted access. This maps to CWE-926: Improper Export of Android Application Components and OWASP Mobile Top 10 M3: Insecure Authentication/Authorization.

Backup enabled #

android:allowBackup="true" is set on the app, which allows any user with USB debugging to pull a full copy of the app’s private data off the device using adb backup. Combined with the credential logging and hardcoded secrets discussed earlier, this is another path to full credential compromise. Reference: CWE-530: Exposure of Backup File to Unauthorized Control Sphere.

Wake lock #

The app requests android.permission.WAKE_LOCK in the manifest without any obvious feature that requires keeping the device awake. Over-broad permissions like this widen the app’s attack surface and violate the principle of least privilege — worth flagging as a hardening finding even though it isn’t directly exploitable on its own.

↑
