Exploiting Android WebViews and Custom Tabs

·8 mins
Android Security Mobile Pentesting WebViews Custom Tabs

Exploiting WebViews #

WebViews and Custom Tabs let developers overlay browser functionality inside an app instead of navigating users out to an external browser. That convenience increases the attack surface in Android apps. If the WebView loads attacker-controlled URLs, executes untrusted JavaScript, or exposes native Java methods to the page, it can end up leaking private files or launching unexposed activities on the device.

Why does this matter? A WebView is not just a UI widget. It is a mini-browser that runs inside your app’s sandbox, with access to your app’s files, cookies, and any Java objects you hand it. The moment an outside input reaches it, you are effectively giving the web a foothold inside the app process. This also intriduces web command injection vulnerabilities to android apps.

Attack Surface #

  • WebView is an actual embedded browser inside your app. It is isolated from other apps, so a user logged into a site in Chrome will not be logged in inside the WebView on the app.
  • Custom Tabs are not a UI element you render. They are an Android API that hands the URL to the device’s default browser (e.g., Chrome, Brave etc) and shows a customized tab of it in the android app. Because they reuse the installed browser, they share session data, cookies, and accounts with it.

The easiest way to think about it: a WebView is a browser inside your app that you are responsible for securing. A Custom Tab is the real browser outside your app that you are only theming.

Loading Local Files in a WebView #

WebViews load remote pages using a URL, for example webView.loadUrl("https://florencenjeri.netlify.app");. When the app is debuggable, you can attach chrome://inspect/#devices and step through the JavaScript running inside it.

For offline content, developers drop HTML files into the app’s asset folder (for example index.html) and load them on the Webview with the URI file:///android_asset/index.html.

Custom WebView loading local content

The screenshot above shows the WebView loading a file from the app’s internal storage path /data/data. That only works when webView.getSettings().setAllowFileAccess(true) is enabled.

NOTE: Assets are bundled into the APK, and because the APK is publicly distributed on the Play Store, anything under assets/ is effectively public. Treat it that way when reviewing what a WebView is willing to load.

Some settings like setAllowUniversalAccessFromFileURLs are very dangerous, but might still be required by some apps. We will look deeper into those settings below.

WebView Misconfigurations: JavaScript Interfaces #

Flag 38 #

The vulnerable activity takes a URL from an intent extra and hands it straight to loadUrl():

webView.addJavascriptInterface(new JsObject(), "hextree");
webView.loadUrl(stringExtra);

Methods annotated with @JavascriptInterface expose Java functionality to JavaScript running in the WebView. That is what attackers care about since they can supply the malicious URL with their payload, replacing the original JavaScript payload.

On Android versions older than 4.2 (API 17), this does not just expose the methods the developer intended. Because of how Java reflection works, every public method on the object is reachable, including everything inherited from java.lang.Object. Starting with Android 4.2 (API 17), Google fixed this and only methods explicitly marked with @JavascriptInterface are accessible from @JavascriptInterface.

The most dangerous inherited method on the old behavior was getClass(). Through getClass(), an attacker could pivot into Java Reflection and reach the entire Java Runtime from a web page.

The exploit

Instead of sending a website URL, the exploit sends a piece of code using the javascript: prefix. When a WebView loads a javascript: URL, it does not navigate to a new page. It executes that code immediately in the context of the current page, with access to any registered @JavascriptInterface objects.

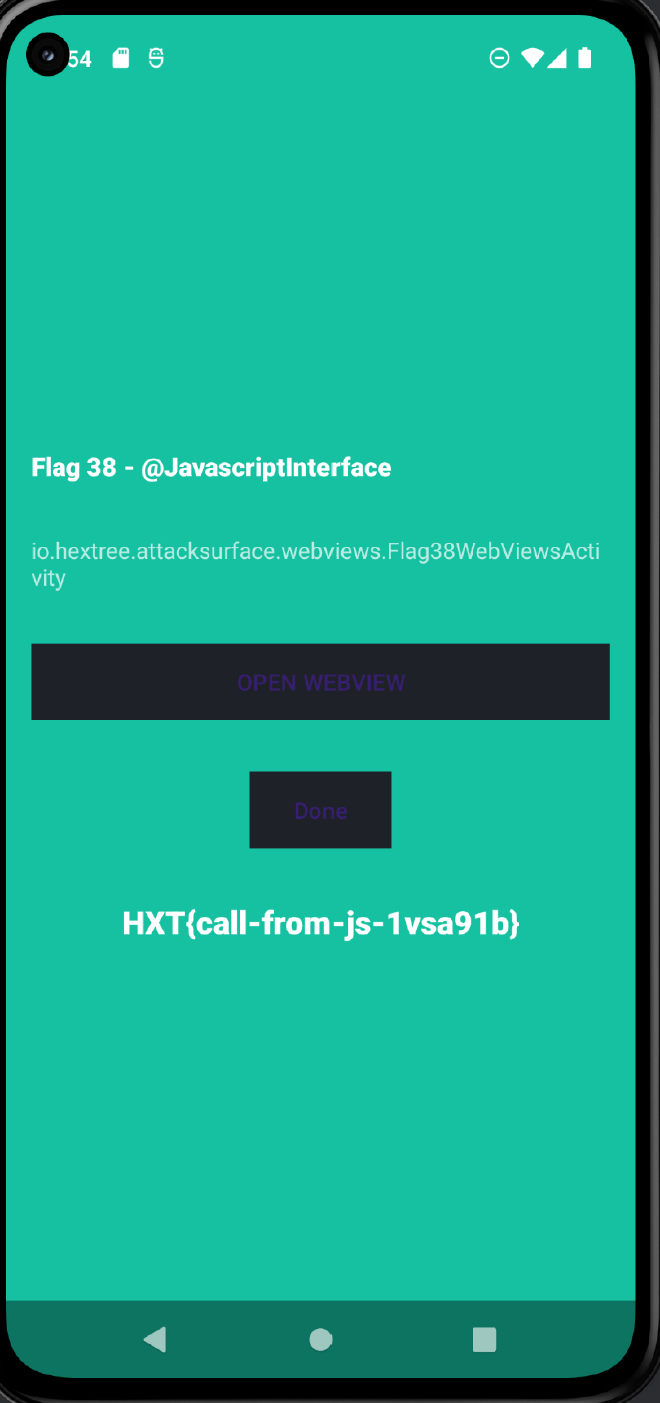

Flag 38 WebView exploit

The exploit intent I built:

Intent intent = new Intent();
        intent.setComponent(new ComponentName("io.hextree.attacksurface", "io.hextree.attacksurface.webviews.Flag38WebViewsActivity"));
        intent.putExtra("URL", "javascript:hextree.success(true)");
        startActivity(intent);

What happens step by step:

  • The victim app receives the intent and passes the URL to webView.loadUrl().
  • The WebView sees the javascript: prefix and executes hextree.success(true).
  • The Java JsObject receives the call. Because the argument is true, it triggers the native Java success() method.

The fix: developers must validate URLs before calling loadUrl(). Reject javascript:, data:, and file: schemes unless there is a very specific reason to allow them, and never build a URL directly out of intent input.

XSS Injections via WebView #

This is a DOM-based Cross-Site Scripting (XSS) attack. The app takes unsanitized input from an Intent and passes it into a WebView, where it eventually gets rendered into HTML without proper escaping.

A common way to deliver payloads to a WebView is a data URI, for example data:text/html,<script>alert(1)</script>.

Flag 39 #

Here is the HTML being loaded into the WebView:

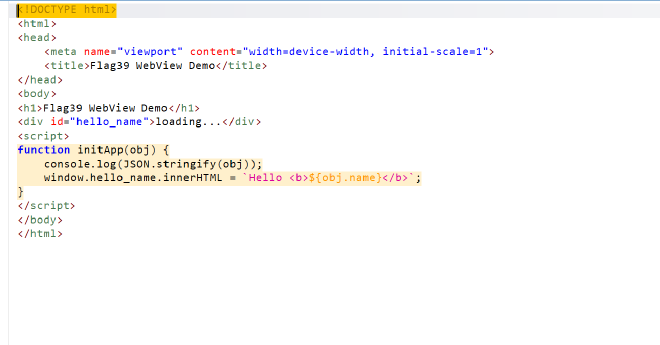

HTML injection point in Flag 39

The JavaScript sinks are worth hunting for whenever you review WebView code:

  • Execution sinks: eval(), setTimeout(), setInterval(), new Function().
  • DOM sinks (XSS): .innerHTML, .outerHTML, document.write().
  • Navigation sinks: location.href, window.open().

The developer tries to sanitize the intent extra by wrapping it in JSONObject.toString() ,in Flag39’s challenge, before injecting it into the page using the following code:

webView.evaluateJavascript("initApp(" + jSONObject.toString() + ")", null);

That escaping actually stops the naive quote-breakout payload flag39.putExtra("NAME", "\"});hextree.success();//");, because JSONObject escapes " with \ and the whole thing gets treated as a string literal instead of a statement.

Where the weakness lies: JSONObject keeps the JSON syntax intact, but in the JSON standard < and > are perfectly valid characters. Nothing gets escaped there. So we can still smuggle HTML through the extra, and once initApp() in flag39.html drops that value into innerHTML, we get script execution.

Crafting the exploit:

Intent flag39 = new Intent();
flag39.setClassName("io.hextree.attacksurface", "io.hextree.attacksurface.webviews.Flag39WebViewsActivity");
flag39.putExtra("NAME", "<img src=x onerror=hextree.success()>");
startActivity(flag39);

Tip: always think about the sink. Where is the data flowing from the source, and how is it eventually handled? Encoding at the wrong layer is the same as no encoding at all.

Stealing App Internal Files #

Two WebView settings turn a normal DOM XSS into full-blown internal file theft. If either is enabled, an attacker with script execution inside the WebView can read files like shared preferences or local databases straight out of the app sandbox.

  • setAllowFileAccessFromFileURLs(true): allows one file:// URL to access other file:// URLs.
  • setAllowUniversalAccessFromFileURLs(true): is the nuclear option since it allows a file:// URL to access any other file:// URL on the device, and even reach https:// origins.

How to exploit the misconfigurations above #

You can leak files with either XMLHttpRequest or an <iframe>.

Method A: leak via XMLHttpRequest (XHR)

XHR is normally used to fetch data from a server. Here the attacker uses it to fetch data from the phone’s internal storage.

  1. xhr.open('GET', url, true): point url at a private file path, for example file:///data/data/io.hextree.attacksurface/shared_prefs/Flag40Preferences.xml.
  2. xhr.send(): the WebView fetches the file.
  3. xhr.responseText: because UniversalAccess is enabled, the WebView happily hands the script the file’s contents — passwords, tokens, or flags stored in that XML.

Method B: leak via <iframe>

An <iframe> is a mini-window inside a page.

  1. iframe.src = url: create a hidden iframe pointed at a private file (for example file:///data/data/io.hextree.attacksurface/shared_prefs/Flag40Preferences.xml).
  2. iframe.contentDocument: normally, the Same-Origin Policy blocks a page from reading into an iframe loaded from a different origin.
  3. The theft: with UniversalAccess enabled, the SOP protection is nn-existent and the attacker’s script reaches into the iframe, grabs innerHTML, and stores the file contents in a variable.

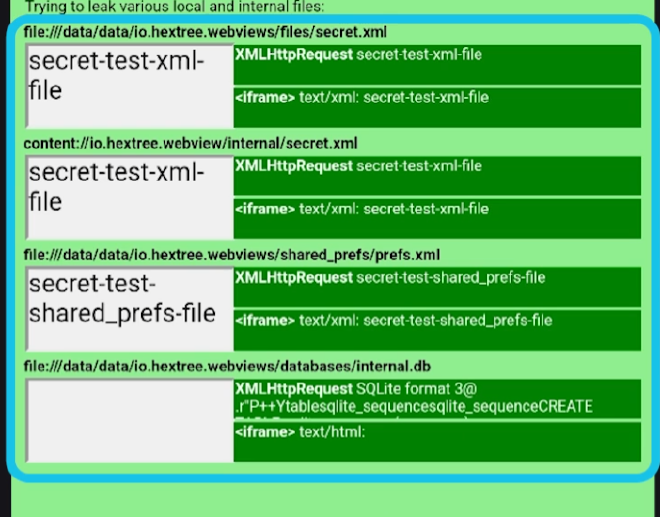

Stealing internal files through WebView misconfiguration

From a security perspective, AllowUniversalAccessFromFileURLs is a sandbox-erasing switch. If you see it enabled during a review, treat every file:// load and every DOM sink as a critical finding until proven otherwise.

Custom Tabs #

Custom Tabs are a feature offered by the Android browser that lets developers add a customized browser tab UI inside the app instead of launching an external browser application. It is an Android API, and unlike WebViews, Custom Tabs are not actually a UI element. They lean on the browser installed on the device to provide the interface and functionality.

That inheritance is the whole point. The app gets the security features of the external browser without having to handle web data the way a WebView does. A WebView can end up breaking the Same-Origin Policy because Chrome has no access to internal app files or a FileProvider and therefore cannot enforce the same behavior. With Custom Tabs, you rely on the browser’s security model and stop worrying about allowJavascript-style vulnerabilities.

Because of that, Google generally recommends Custom Tabs over WebViews: https://support.google.com/faqs/answer/12284343?hl=en-GB

Attack Surface #

  • WebView is an actual embedded browser within the app. It is isolated from other apps, meaning a user logged into a website in their primary browser will not be logged in inside the WebView.
  • Custom Tabs simply drive the default browser on the device (e.g., Chrome). They share session data, cookies, and accounts with that browser, so users are already logged into whatever they signed in to there.

While apps cannot expose native Java methods through Custom Tabs, they can still set up postMessage() communication, which opens a different set of attack paths.

Post Messages #

postMessage() allows two-way communication between an app and a website loaded in a Custom Tab. From a testing perspective, that channel is worth treating like any other IPC boundary: assume the other side is untrusted, and audit every message handler for the same input-validation issues you would look for on a JavaScript bridge.

Summary #

WebViews and Custom Tabs solve the same product problem — showing web content inside an app — but they sit on very different sides of the sandbox boundary. A WebView runs inside your app process, shares its files, and can bind Java objects into JavaScript through @JavascriptInterface. Anything attacker-controlled that reaches loadUrl(), evaluateJavascript(), or a DOM sink can pivot into script execution, and from there into internal file access when settings like setAllowFileAccess, setAllowFileAccessFromFileURLs, or setAllowUniversalAccessFromFileURLs are enabled.

Custom Tabs push that surface out to the real browser, which is why Google recommends them for anything that just needs to render web content. As a pentester, the questions to keep asking are the same across both: what URL can I make this component load, what data ends up in the DOM, and what native or cross-origin capability is the developer accidentally handing to that page?

↑
